LWIR Uncooled

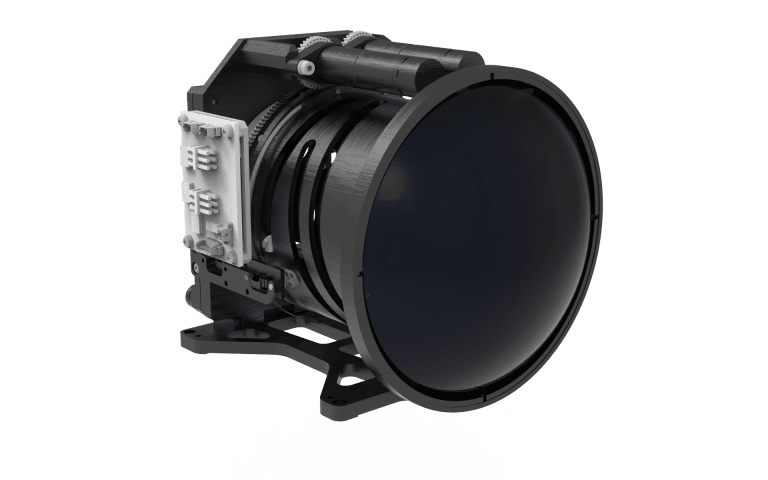

Yarkon

LWIR 24–90mm F/0.9 Continuous zoom Lens for 1024 x 768 x 12µ uncooled detectors

Features:

• Very high sensitivity zoom lens F/0.9
• Cost effective solution for HLS
• Compact light & small design

Specifications

camera-lens (1)
Optical
OPTICAL Focal Length / F#
24-90mm / F0.95
Detector (FPA) type / size
Up to 1024 x 768 x 12μ
Working Spectral Range
8-14μ
settings-01
Mechanical
Focus / Zoom mechanism
Motorized
With single motor
Total Weight
1Kg
Ext. Dimensions L x W x H (mm)
115 x 150mm
NFOV Boresight Retention
≤0.045 mm radius at the focal plane
lightbulb-04
Electrical
Power Input
12VDC, 1.0A
Communication Protocol
RS-422/232 Full Duplex
thermometer-02 (1)
Environmental
Operating Temperature / Storage Temperature
-25ºC to +55ºC / -50ºC to +75ºC
Shock and Vibrations
Per applicable standart
Front lens sealing
IP66
IP67 By request

For more information about this product, Please leave your details and we will get back to you with an answer

or send a message to email
info@rp-optical-lab.com
