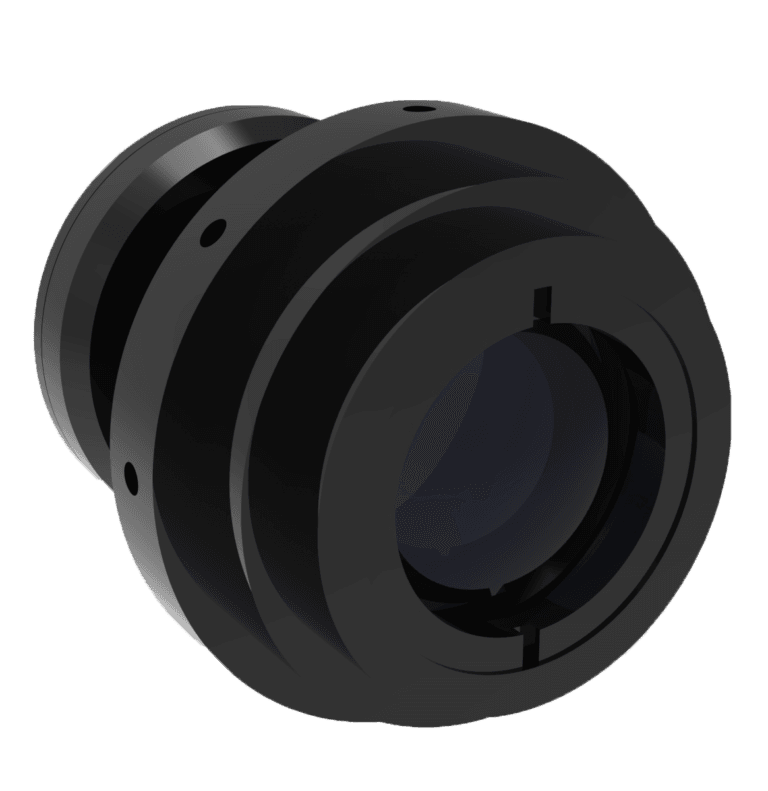

RP-042A

LWIR 4.2 mm Ultra Wide FOV A-Thermal Lens

Features:

• Widest FOV available for VGA detectors
• Suitable for applications where single camera should cover large area
• A-Thermal design with excellent performance over the entire FOV

Specifications

camera-lens (1)
Optical
OPTICAL Focal Length / F#
4.2 mm / F1.1
Detector (FPA) type / size
640 x 480 x 17 μ
settings-01
Mechanical
Total Weight
60gr
Ext. Dimensions L x W x H (mm)
Front Diameter: 32 mm; Length: 42 mm
lightbulb-04
Electrical
Electrical
12VDC, 1.0A
Communication Protocol
RS-422/232 Full Duplex
thermometer-02 (1)
Environmental
Operating Temperature / Storage Temperature
-25ºC to +50ºC / -40ºC to +80ºC
A-Thermal lens over 80ºC span
Shock and Vibrations
Per applicable standard
Front lens sealing
IP67
