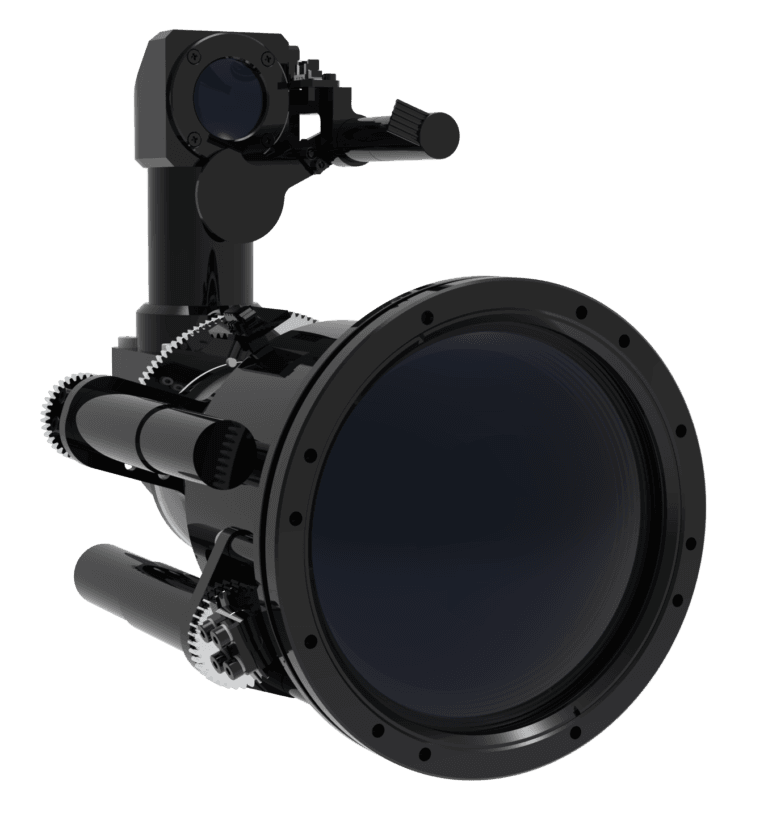

FOLDED-D300

MWIR 20-300mm F/4.0 Continuous zoom Lens for 640 x 512 x 15μ cooled detectors

Features:

-180° double Folded, Compact & light weight design
-Intended for various volume restricted applications
-Focus is maintained through the entire zoom range providing extremely fast zoom and focus response

Specifications

camera-lens (1)
Optical
OPTICAL Focal Length / F#
20-300mm F/4.0
Detector (FPA) type / size
Up to 640 x 512 x 15μ
Working Spectral Range
3.6 – 4.9μ
settings-01
Mechanical
Focus / Zoom mechanism
Motorized
Total Weight
≤ 920 gr
Ext. Dimensions L x W x H (mm)
140 x 92 x 144
(Please refer to the MICD)
lightbulb-04
Electrical
Power Input
12VDC, 1.0 A
Rush in current 3A
Communication Protocol
RS-422/232 Full Duplex
thermometer-02 (1)
Environmental
Operating Temperature / Storage Temperature
-32ºC to +60ºC / -40ºC to +70ºC
Shock and Vibrations
Per applicable standard
Front lens sealing
IP66
