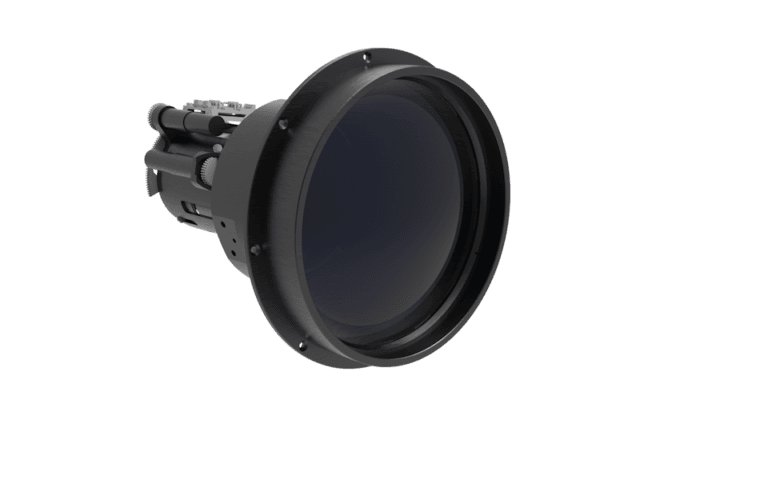

IRIS-BB HD
MWIR 18-330mm F/3.0-4.0 Continuous zoom Lens
for 1280 x 1024 x 10µ cooled detectors
SYSTEM FEATURES:
- Supports HD 10µ detectors and sensors with up to 16.4mm diagonal
- Available with 19-22mm or 28mm cold shield distances
- Rugged design to fit various applications
- Available with different types of front expanders (x1.5, x2)
Download Product Brochure
| Optical | ||
|---|---|---|
| Focal Length / F# | 18 - 330 mm F/3.0-4.0 | |
| Detector (FPA) type / size | Up to 1280 x 1024 x 10µ | |
| Working Spectral Range | 3.6 – 4.8µ | |
| HFOV (degrees) | Wide: 39.1° | |
| Narrow: 2.22° | ||
| Optical Coatings | ||
| All internal surfaces | High efficiency AR coating | |
| Front surfact | High durability AR coating | DLC is available upon request |
| CSH | 19-22mm or 28mm |
| Mechanical | ||
|---|---|---|
| Focus / Zoom mechanism | Motorized | |
| Total Weight | 850gr | |
| Ext. Dimensions ø x length (mm) | 93.46 x 129.4 |
| Electrical | ||
|---|---|---|
| Power Input | 12VDC, 1.0A | |
| Communication Protocol | RS-422/232 Full Duplex |
| ENVIRONMENTAL | ||
|---|---|---|
| Operating / Storage Temperature | -25ºC to +55ºC / -40ºC to +70ºC | |
| Shock and Vibrations | Per applicable standard | |
| Front lens sealing | IP66 | IP67 By request |
