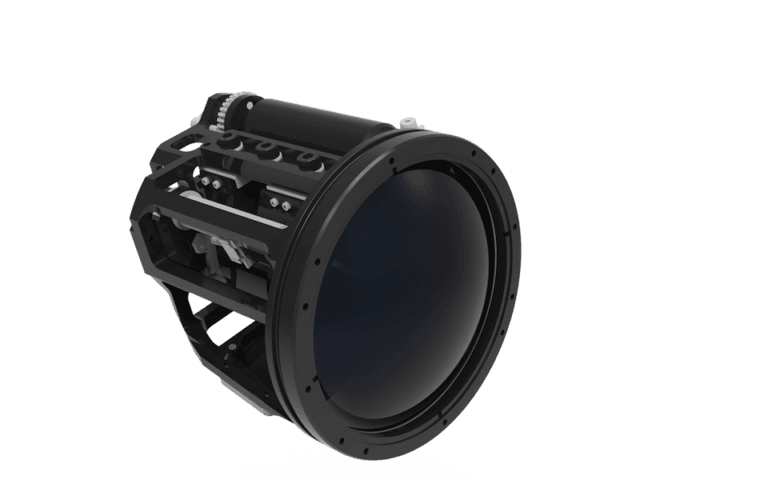

IR-BEE
MWIR 20-340mm F/5.5 Continuous zoom Lens
for 640 x 512 x 15µ cooled detectors
SYSTEM FEATURES:
- Ultra Compact and light weight lens
- “ZERO” boresight errors for maximum accuracy
- Perfect solution for airborne payloads
Download Product Brochure
| Optical | ||
|---|---|---|
| Focal Length / F# | 20-340mm F/5.5 | |
| Detector (FPA) type / size | Up to 640 x 512 x 15µ | |
| Working Spectral Range | 3 – 5µ | |
| HFOV (degrees) | Wide: 27° | |
| Narrow: 1.62° | ||
| Optical Coatings | ||
| All internal surfaces | High efficiency AR coating | |
| Front surface | High durability AR coating | DLC is available upon request |
| CSH | 19-22mm |
| Mechanical | ||
|---|---|---|
| Zoom mechanism | Motorized | |
| Total Weight | 265gr | |
| Ext. Dimensions ø x length (mm) | 78.7 x 87 |
| Electrical | ||
|---|---|---|
| Power Input | 12VDC, 1.0A | |
| Communication Protocol | RS-422/232 Full Duplex |
| ENVIRONMENTAL | ||
|---|---|---|
| Operating / Storage Temperature | -25ºC to +55ºC/-40ºC to +70ºC | |
| Shock and Vibrations | Per applicable standard | |
| Front lens sealing | IP66 | IP67 By request |
